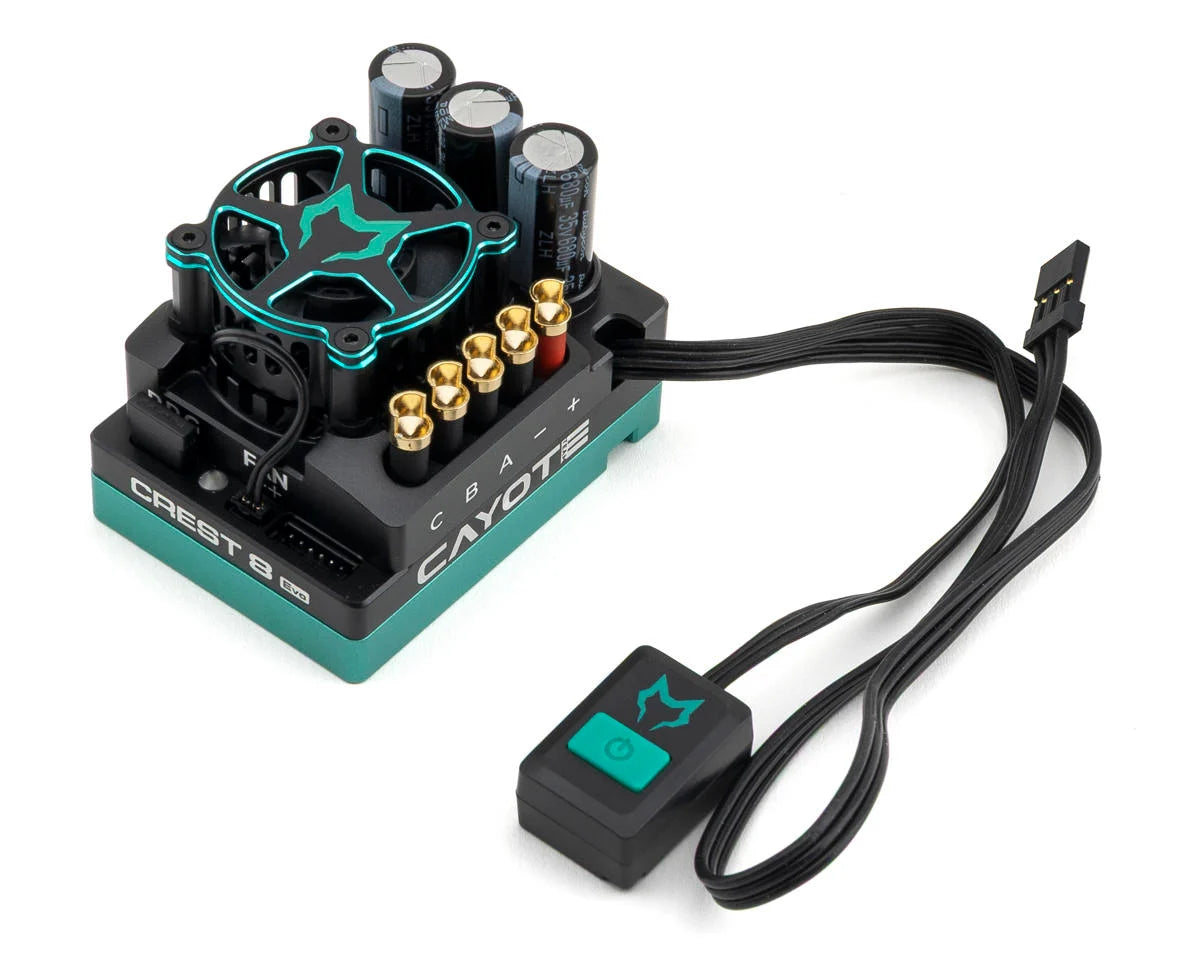

Cayote Crest 8 EVO 1/8 200A Sensored Brushless ESC w/Bluetooth - CYEA10802

🏁 ESC Overview

The Cayote Crest 8 Evo 1/8 200A Sensored Brushless ESC is built for serious 1/8 scale performance, delivering precise power control, dependable reliability, and up to 10% more peak power to give you an edge when it matters most. Designed with reverse polarity protection, it helps safeguard your electronics from wiring mistakes, while advanced cooling and a high-output BEC keep your system stable under heavy load.

With built-in Bluetooth connectivity, offline data recording, and extensive tuning options, the Crest 8 Evo adapts easily to different track conditions and driving styles. Whether you’re chasing podiums or pushing hard through rough terrain, this ESC delivers the control, protection, and durability demanded by competitive racers.

Powerful Boost & Turbo Timing

Featuring a massive 48° boost and turbo timing, the Crest 8 Evo maximizes acceleration and top speed while optimizing motor efficiency. The advanced timing system delivers a smoother throttle feel and improved stability during high-speed runs—perfect for competitive racing setups.

Bluetooth & Data Monitoring

With offline data recording, you can track ESC performance and review key metrics to dial in your setup. Built-in Bluetooth allows wireless monitoring and tuning through the Cayote Team app, and recorded data can also be reviewed using the Cayote Xlink Multifunction LCD Program Box (CYECPB01 - sold separately).

Reverse Polarity Protection & Full Parameter Tuning

Equipped with 37+ adjustable parameters, the Crest 8 Evo offers extensive tuning for throttle feel, braking, and RPM limiting to match your driving style. Multiple protection functions—including low voltage and motor overheat protection—help protect your electronics for long-term reliability, while reverse polarity protection adds peace of mind before your first run.

Features:

• Built-in Bluetooth compatibility with the Cayote Team app
• 10% more peak power for added performance
• Offline data recording for performance tracking
• Reverse polarity protection
• High-performance ARM architecture - 32-bit industrial-grade Cortex-M4 core
• Up to 108 MHz clock speed - 5x computing power improvement
• 1-20 adjustable drag brake
• Multiple protection functions for long-term reliability
• Optional RPM limiting: 10-88K RPM
• Throttle midpoint: 4%, 6%, 8%, or 10%

Includes:

• (1) Crest 8 Evo 1/8 200A Sensored Brushless ESC
• (1) Sensor Cable
• (3) Black 10AWG Wire Connectors
• (1) Black 13AWG Wire Connector
• (1) Red 13AWG Wire Connector
• (1) Heat Shrink Tube Set
• (1) Double-Sided Mounting Tape
• (1) Instruction Manual

Specifications:

• Suggested Application: 1/8 Buggies, Truggies & Trucks
• Motor Type: Brushless - Sensored/Sensorless
• Input Voltage: 2-4S LiPo (7.4-14.8V)
• Continuous Current: 200A
• Peak Current: 1080A
• Dimensions (LxWxH): 2.24x1.64x1.57in (56.8x41.6x40mm)
• Weight: 4.3oz (122g)
• Motor Limits: 4268/4274 3000kV Maximum with 4S LiPo
• BEC Voltage: 6.0 / 7.4V
• BEC Continuous Current: 8A
• BEC Peak Current: 12A
• Motor Connector: Solder
• Battery Connector: Solder
• Motor Wire: 10AWG
• Battery Wire: 13AWG
• Programmable: Yes, with Cayote Xlink Program Box or Cayote Team App

*Tech Note: The Cayote Xlink Multifunction LCD Program Box (CYECPB01 - sold separately) or Cayote Team app are required to read recorded data.

Part Number:

CYEA10802
