Cayote Crest X Evo 1/10 160A Sensored Brushless Mod Competition ESC - CYEA11005

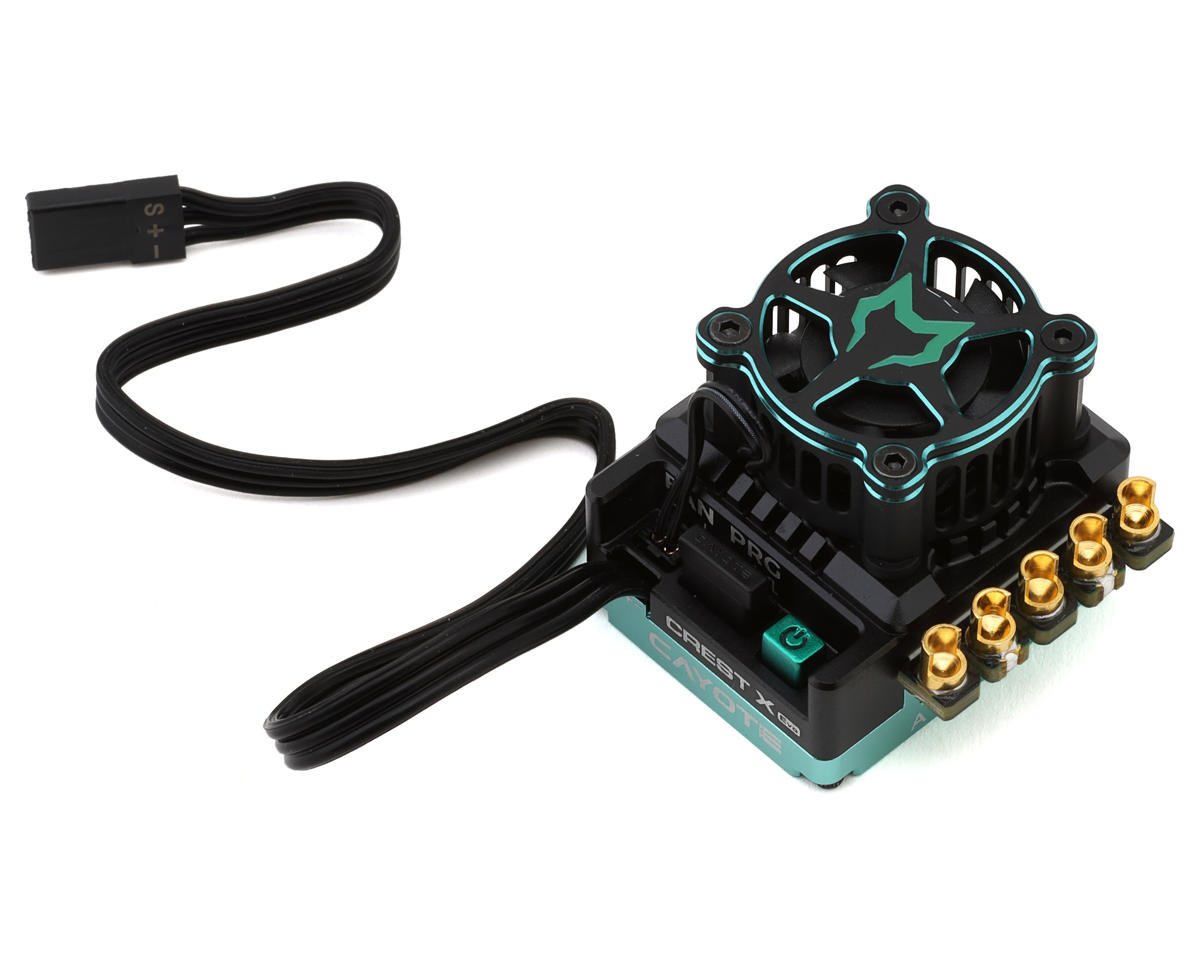

🏁 Cayote Crest X Evo 1/10 160A Sensored Brushless Mod Competition ESC

The Cayote Crest X Evo 1/10 160A Sensored Brushless Mod Competition ESC represents the next generation of high-performance racing technology. Developed with direct feedback from professional drivers and stress-tested in elite racing environments, the Crest X Evo delivers unmatched power delivery, efficiency, and precision. With dramatically improved processing speed, advanced cooling, and expanded tuning capabilities, this ESC provides the tools needed to compete at the highest level.

⚡ Seamless Power & Flexibility

The Crest X Evo features intelligent sensored/sensorless mode switching, allowing racers to adapt instantly to changing track conditions. In sensored mode, the ESC provides ultra-smooth rotor detection for refined low-speed control. Switch to sensorless mode and enjoy simplified, reliable operation. With up to 64° of Boost and Turbo timing, the Evo delivers explosive acceleration, razor-sharp throttle response, and confident control through every corner.

❄️ Advanced Cooling & Processing Power

To ensure consistent performance throughout long mains, the Crest X Evo is equipped with a metal-framed four-vent cooling fan that maximizes airflow and keeps components running cool and clean. At its core is a high-performance 32-bit Cortex-M4 processor running at 108MHz — five times faster than the original Crest X — enabling rapid calculations, ultra-precise braking, and responsive control under extreme workloads.

🛡️ Customization & Safety Features

Fine-tune your performance with adjustable throttle and brake PWM frequencies, accessible via the Xlink program box or wirelessly through the BTUNE mobile app. A full suite of protection systems — including over-temperature, low voltage, motor stall, reverse polarity, and fail-safe — ensures long-term reliability and consistent performance in even the harshest competitive environments.

⚙️ Features

• 160A continuous / 1100A peak current
• Seamless sensored/sensorless mode switching
• Up to 64° Boost & Turbo timing
• 32-bit Cortex-M4 processor @ 108MHz
• Metal-framed cooling fan with four-vent airflow design
• Adjustable throttle & brake PWM frequencies
• Wireless tuning & data logging via BTUNE app
• Comprehensive protection systems
• Lightweight, compact 55g design
• Optimized for 1/10 scale buggies & touring cars

📦 Includes

• (1) Crest X Evo 1/10 160A Sensored Brushless Mod Competition ESC
• (1) Instruction Manual

📊 Specifications

• Suggested Application: 1/10 Scale
• Motor Type: Brushless – Sensored/Sensorless
• Input Voltage: 2S LiPo (7.4V)
• Continuous Current: 160A
• Peak Current: 1100A
• Dimensions (L×W×H): 1.49 × 1.49 × 1.18 in (37.9 × 37.8 × 30 mm)
• Weight: 1.94 oz (55g)
• BEC Voltage: 6V / 7.4V
• BEC Continuous Current: 8A
• Programmable: Yes — via BTUNE Wireless App

🔎 Part Number

Manufacturer Part #: CYEA11005

Engineered for elite-level competition — the Cayote Crest X Evo delivers the precision, speed, and reliability needed to dominate the track.
