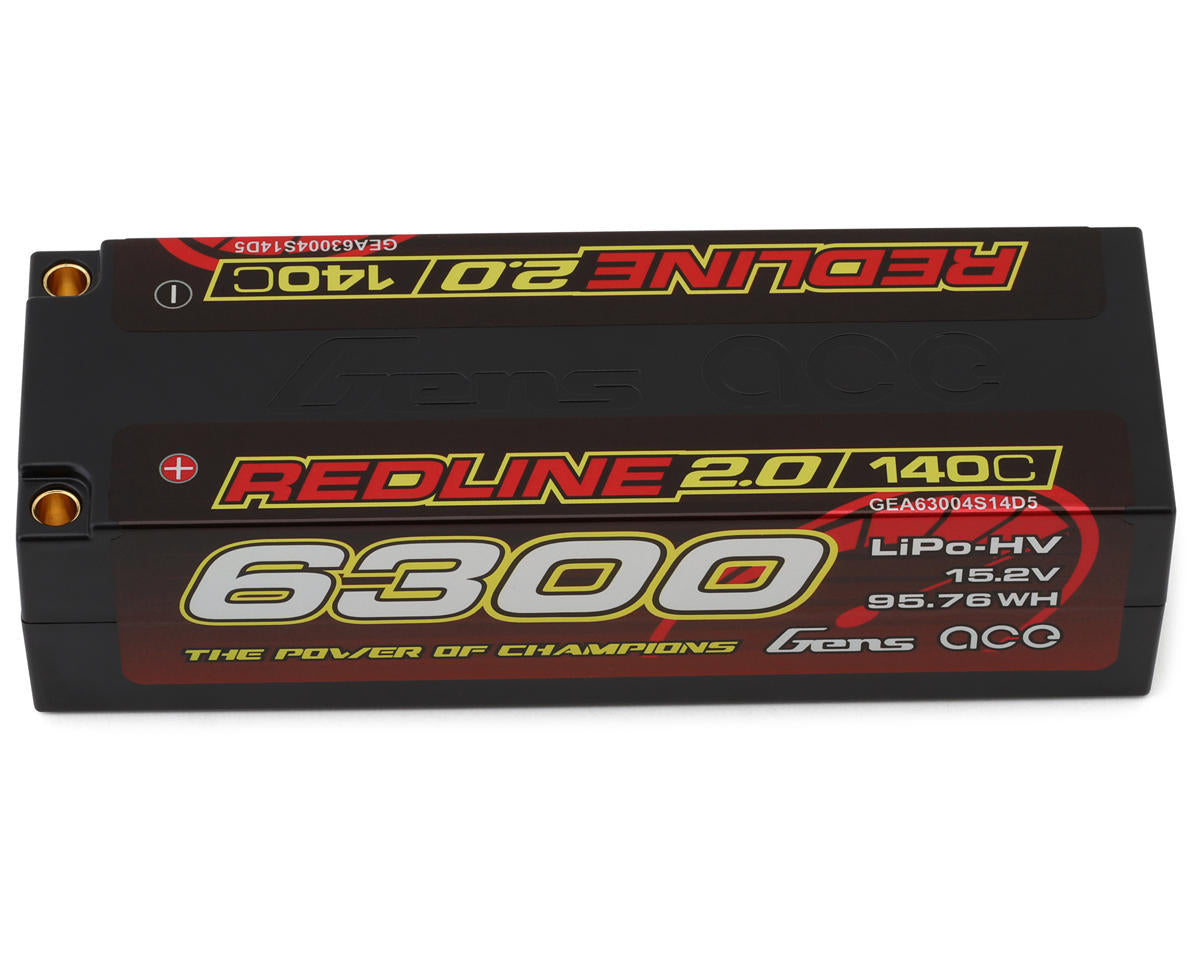

Gens Ace Redline 2.0 4S LiHV Battery 140C (15.2V/6300mAh) w/5.0mm bullet - GEA63004S14D5

🏁 Battery Overview

The Gens Ace Redline 2.0 4S LiHV Battery is engineered to deliver reliable, consistent, and high-output performance for demanding RC applications. Proven within the Radio Control community, Gens Ace batteries are known for superior factory cell matching and extremely consistent performance from pack to pack.

Built using stable automatic stacking technology and strict quality control standards, this Redline 2.0 LiHV battery features low internal resistance (IR) for stable voltage output throughout the entire run. The high-capacity 6300mAh configuration combined with a massive 140C discharge rating delivers exceptional punch, runtime, and efficiency, making it an excellent choice for high-power setups.

Features:

• High-performance Redline 2.0 LiHV battery technology
• Stable automatic stacking technology
• Strict single-cell capacity, voltage, resistance, and discharge curve matching
• Low internal resistance for consistent voltage output
• High-capacity and high-discharge design
• Low-profile and lightweight construction
• 5mm bullet connectors for high-current applications

Includes:

• (1) Redline 2.0 4S LiHV Battery 140C (15.2V / 6300mAh)

Specifications:

• Nominal Voltage: 15.2V (4S)
• Capacity: 6300mAh
• Maximum Charge Rate: 1C (6.3A)
• Continuous Discharge: 140C
• Cell Configuration: 4S1P
• Watt Hours: 95.76Wh
• Battery Connector: 5mm Bullet
• Balance Connector: 2mm Bullet
• Dimensions (LxWxH): 5.47 x 1.8 x 1.45in (139 x 47 x 37mm)
• Weight: 15.9oz (452g)

IMPORTANT LITHIUM POLYMER SAFETY INFORMATION

• DO NOT leave a battery in your model when charging
• DO NOT leave lithium batteries unattended when charging
• ALWAYS balance charge lithium batteries
• ALWAYS use a LiPo Safe charging bag or box
• ONLY use a Li-Poly specific charger
• DO NOT over-discharge lithium battery packs
• READ and UNDERSTAND all instructions before use

Note: When using high-energy LiHV batteries, avoid over-charging or over-discharging. Discharge should not exceed 80% of total capacity. For best cycle life, fully charge before use and discharge no more than 50% for the first five cycles. Always monitor battery temperature and allow packs to cool before recharging.

Part Number:

GEA63004S14D5
