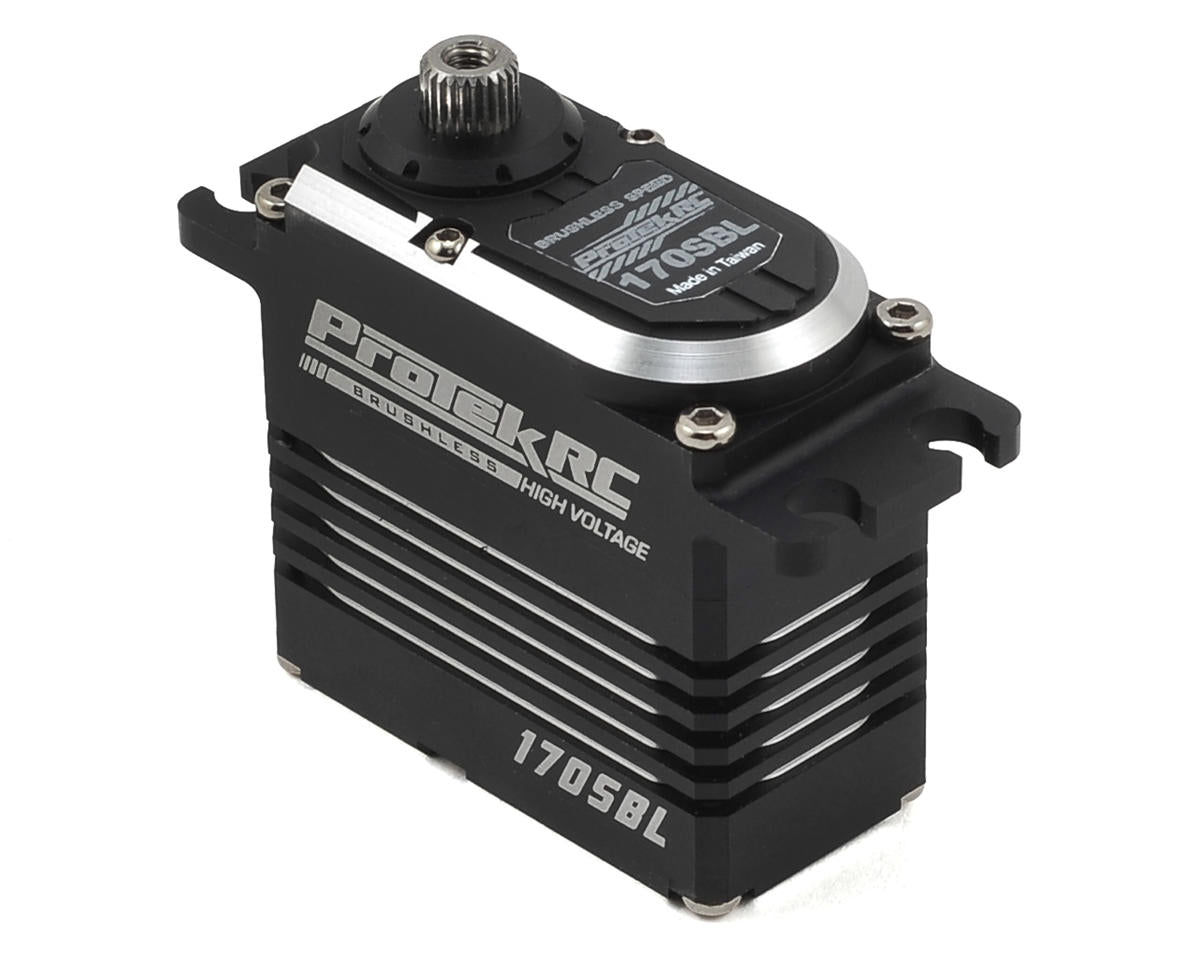

ProTek RC 170SBL Black Label High Speed Brushless Servo (High Voltage/Metal Case) (Digital) - PTK-170SBL

🏁 Servo Overview

The ProTek RC 170SBL Black Label High Speed Brushless Servo represents the next evolution in servo technology, delivering lightning-fast response, massive torque, and pro-level durability for serious surface racers. Modern brushless servo technology has advanced to the point where holding power, speed, and precision now rival — and often exceed — traditional coreless servos, while offering superior efficiency and lifespan.

Built for demanding 1/10–1/8 scale surface applications, the 170SBL features a full black anodized aluminum case with contrasting aluminum and white accents for a stealth, high-end appearance. The aluminum upper case provides exceptional durability, while the heat-sink-style center case improves thermal dissipation and reduces overall weight during long mains.

A detachable servo lead system allows for clean, custom wiring layouts, and ProTek includes both short and long servo leads to fit a wide range of installations. With blistering speed, massive torque, and full metal gearing, the 170SBL is an ideal choice for competitive buggy, truggy, GT, and touring car builds.

⚠ NOTE: If you experience glitching or poor performance while using a Futaba transmitter, you must turn BLS mode OFF. BLS mode is only compatible with Futaba BLS-type servos.

Features:

• Ideal for 1/10–1/8 scale surface vehicles
• High-performance brushless digital motor
• Full aluminum black anodized case for durability
• High-voltage compatible circuitry (HV)
• Extremely fast transit speed with massive torque output
• Full metal gear train with dual ball bearings
• Detachable servo lead for clean, customizable wiring
• Gold-plated connectors for reliable signal transmission

Performance:

• 6.0V: 0.09 sec / 458 oz-in (32.9 kg-cm)
• 7.4V: 0.08 sec / 535 oz-in (38.5 kg-cm)

Includes:

• (1) ProTek RC 170SBL Brushless Servo
• (1) 150mm Detachable Servo Lead
• (1) 300mm Detachable Servo Lead
• Servo Arms & Mounting Hardware

Optional Servo Leads:

• PTK-3049 – 70mm (2.75")
• PTK-3047 – 150mm (5.91")
• PTK-3048 – 300mm (11.81")

Specifications:

• Model: 170SBL
• Recommended Application: 1/10–1/8 Scale Surface
• Operating Voltage: 4.8V – 7.4V
• Motor Type: Brushless Digital
• Output Shaft: 25 Tooth
• Gears: Metal
• Pulse/Frequency: 1520µs / 333Hz
• Dimensions: 40 × 20 × 37.8mm
• Length (Bottom to Mount): 28.4mm
• Weight: 72g
• Operating Temperature: 14°–140°F (-10° to +60°C)

Part Number:

PTK-170SBL
