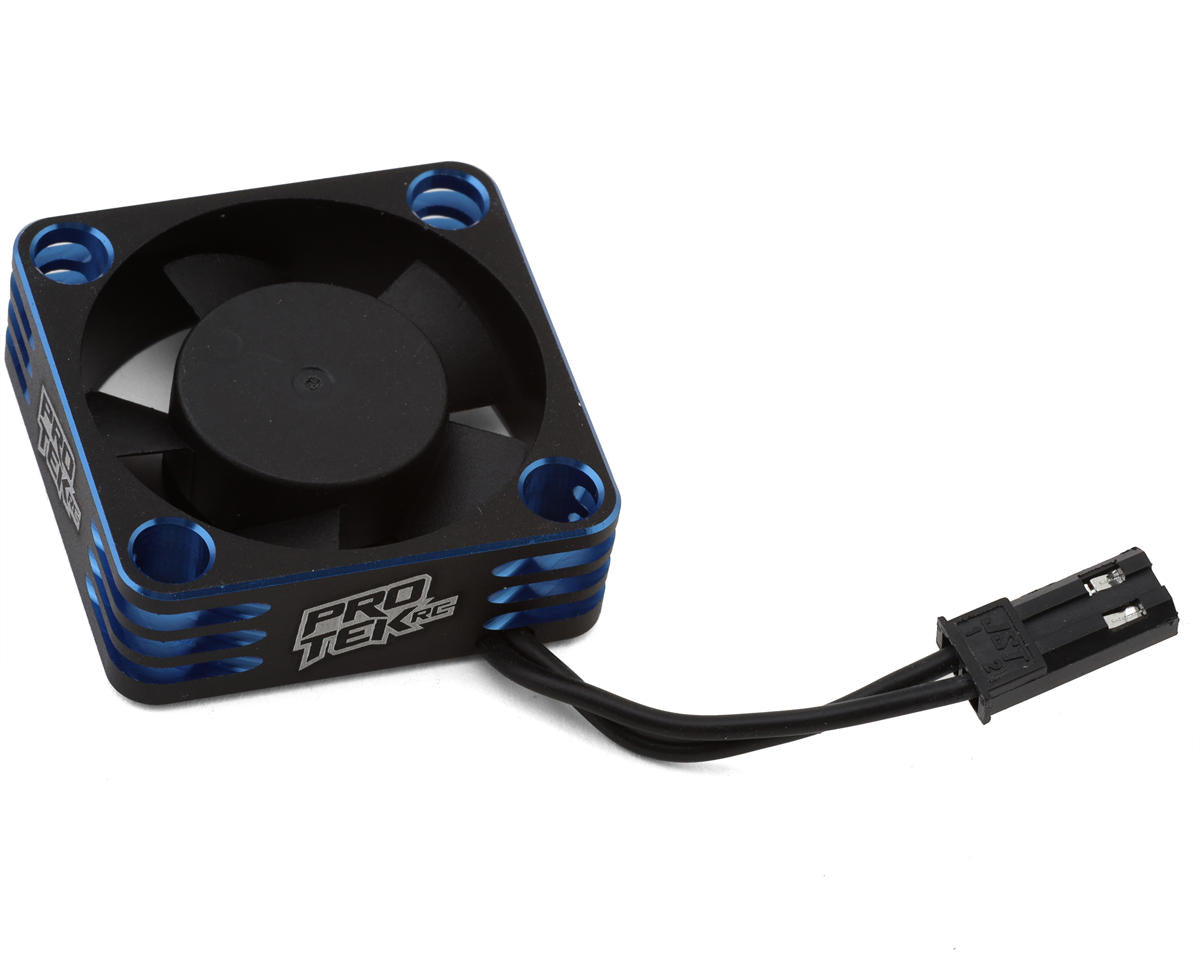

ProTek RC 30x30x10mm Aluminum High Speed HV Cooling Fan (Blue/Black) - PTK-2112

🏁 ProTek RC 30x30x10mm Aluminum High Speed HV Cooling Fan

The ProTek RC 30x30x10mm Aluminum High Speed HV Cooling Fan is the ultimate cooling solution for your ESC or motor, keeping temperatures low under extreme racing conditions. The CNC-machined aluminum housing not only helps dissipate heat efficiently but also adds strength to protect the fan blades in case of crashes. This fan is built to handle the demands of high-voltage racing setups with reliable, long-lasting performance.

Engineered as a true 2S HV component, it’s equipped with dual ball bearings for smooth operation and includes a 2-pin JST connector with a 30mm lead, plus a 200mm extension for flexible installation. Mount it with double-sided tape or an optional fan mount (sold separately) for optimal airflow and cooling efficiency.

⚙️ Features

• 30mm Aluminum Cooling Fan: Ideal for ESC and motor cooling applications.
• High-Speed Dual Bearing Design: Capable of 28,000 RPM for maximum airflow.
• Aluminum Housing: Helps dissipate heat and adds protection to fan blades.
• HV Compatible: Operates safely on 2S LiPo systems (up to 8.75V).
• Stylish Finish: Anodized black with blue chamfered edges.
• Flexible Mounting: Compatible with 1/12, 1/10, and 1/8 scale platforms.
• Easy Installation: Pre-wired with JST connector and 200mm adapter extension.

⚠️ Installation Note

Install at least 5mm away from the motor to ensure proper airflow and prevent magnet interference.

📊 Specifications

• Product Model: High Speed HV Cooling Fan
• Application: 1/12 – 1/8 Motor & ESC
• Fan Speed: 28,000 RPM
• Dimensions (LxWxH): 31 × 31 × 10.5mm
• Mounting Pattern: 24 × 24mm
• Material: Aluminum Case with Plastic Fan
• Weight: 12.5g
• Operating Voltage: 5V – 8.75V
• Connector: 2-Pin JST
• Current Draw: 0.45A

📦 Includes

• (1) 30x30x10mm Aluminum HV Cooling Fan
• (1) 200mm Extension Adapter Cable

🔎 Part Number

Manufacturer Part #: PTK-2112

Reliable, efficient, and competition-ready — the ProTek RC 30mm Aluminum HV Cooling Fan keeps your electronics running cool and consistent, lap after lap.
