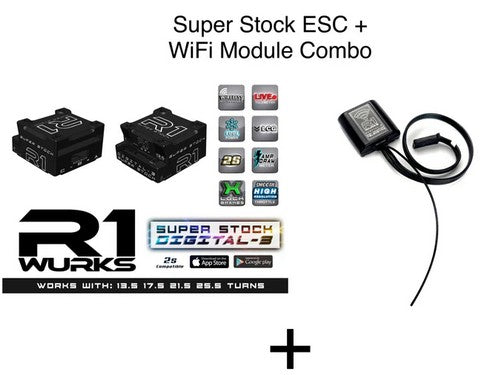

R1WURKS "Super Stock" 2S Digital 3 ESC + Wifi Module - 040013-1

🏁 ESC Overview

The R1 Motor Lab LCG Digital-3 Super Stock Wireless Brushless ESC is one of the most advanced and competitive 1/10-scale ESCs on the market today. Designed for elite-level racing, this controller delivers ultra-smooth power delivery, exceptional efficiency, and class-leading tuning flexibility. Whether you're racing Touring Car, Buggy, Drag, F1, or 1/12 Pan Car, the Digital-3 Super Stock provides the control, speed, and reliability demanded at the highest levels of competition.

Built around an advanced MICROCHIP processor and proprietary R1 firmware, the Digital-3 focuses on smooth, controllable power for stock racing while maintaining impressive top-end speed. The redesigned LCG (Low Center of Gravity) aluminum case reduces overall weight and improves chassis balance, while significantly enhancing heat dissipation through improved airflow exits on all sides.

An all-new Blinky (Zero Timing) Mode powered by R1’s exclusive COOL POWER commutation algorithm keeps motors cooler while delivering strong, consistent acceleration—making it ideal for ROAR, EFRA, and IFMAR sanctioned racing. Wireless programming via the R1 app unlocks live telemetry, onboard data logging, firmware updates, and real-time performance analysis.

Compatible Applications:

• Touring Cars: XRAY X4, Awesomatix A800MMX, Mugen MTC2, Yokomo BD11, Tamiya 420X, & more
• Buggies: Team Associated B6.4 / B74.1 / B7 / B7.1, XRAY XB2 / XB4, Yokomo CAL / DTM, Schumacher LD2 / CAT L1, TLR 22 5.0 / 22X-4
• Drag Cars: R1 DC1, Team Associated DR10, & more
• F1 Cars: XRAY X1, Schumacher Icon, Exotek F1 Ultra, Serpent F110 SF4, Tamiya TRF103
• 1/12 Pan Cars: XRAY X12, Schumacher Eclipse 4

Race Proven Performance:

• ROAR / EFRA / IFMAR Competitive
• Nationals & Reedy Race Ready
• Drag Racing Events: KOTS, SOFLO NPRC Nationals, Street Outlaws Shootout, Lonestar Showdown, RC Outlaw No Prep Redemption

Key Features:

• Low-Center-of-Gravity full aluminum case & heat sink
• Advanced A.C.L.C. (Advanced Component Level Cooling)
• COOL POWER commutation for cooler motors & smooth acceleration
• Blinky Mode (Zero Timing) for spec racing
• Auto Boost & Turbo timing with adjustable delay and slopes
• X-Lock brake response mode with PWM & brake frequency tuning
• Wireless programming & over-the-air firmware updates
• Live telemetry & onboard data logging
• Built-in amp draw meter for timing optimization

Wireless Programming & Telemetry:

• Live ESC & motor telemetry (speed, temperature, voltage, current, RPM)
• Data logging for post-race analysis
• Firmware updates via iOS & Android app

Note: Wireless adapter is required to program this ESC. Program boxes are NOT compatible with the Digital-3 Super Stock.

Specifications:

• Motor Type: Sensored / 2-4 Pole Sensored
• Motor Limit: >13.5T
• Operating Voltage: 7.4V (2S)
• Rated Current: 100A per phase
• BEC Output: 6.0V / 7.4V (3A Continuous)
• Voltage Drop @20A per phase: 0.0048V
• Boost 0 Mode: Yes
• Power Wires: 14AWG pre-installed
• Case Size (no fan): 32.9 x 34.6 x 21mm
• Weight (no wires): 46g

Part Number:

040013-1
